libcamera::ipa::ipu3::IPASessionConfiguration Struct Reference

Session configuration for the IPA module. More...

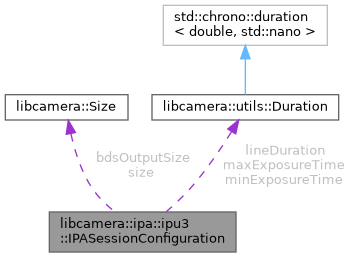

Collaboration diagram for libcamera::ipa::ipu3::IPASessionConfiguration:

Public Attributes
struct {
ipu3_uapi_grid_config   bdsGrid
Size   bdsOutputSize
uint32_t   stride
}	grid
	Grid configuration of the IPA.
struct {
ipu3_uapi_grid_config   afGrid
}	af
	AF grid configuration of the IPA.
agc::Session	agc
	AGC parameters configuration of the IPA.

Detailed Description

Session configuration for the IPA module.

The session configuration contains all IPA configuration parameters that remain constant during the capture session, from IPA module start to stop. It is typically set during the configure() operation of the IPA module, but may also be updated in the start() operation.

---

The documentation for this struct was generated from the following files:

• src/ipa/ipu3/ipa_context.h
• src/ipa/ipu3/ipa_context.cpp
