libcamera::ipa::agc::Session Struct Reference

Session configuration for AgcAlgorithm. More...

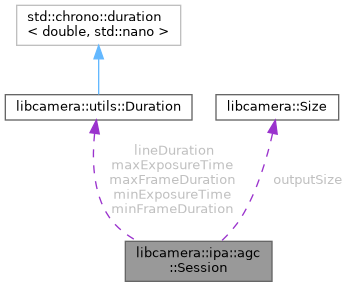

Collaboration diagram for libcamera::ipa::agc::Session:

Public Attributes
utils::Duration	minExposureTime
	Minimum exposure time for the streaming session.
utils::Duration	maxExposureTime
	Maximum exposure time for the streaming session.
double	minAnalogueGain
	Minimum analogue gain for the streaming session.
double	maxAnalogueGain
	Maximum analogue gain for the streaming session.
double	defAnalogueGain
	Default analogue gain of the configured sensor.
utils::Duration	minFrameDuration
	Minimum frame duration for the streaming session.
utils::Duration	maxFrameDuration
	Maximum frame duration for the streaming session.
utils::Duration	lineDuration
	Line duration for the streaming session.
struct {
Size   outputSize
}	sensor
	Details of the sensor configuration.
bool	autoAllowed
	Whether to enable auto controls.

Detailed Description

Session configuration for AgcAlgorithm.

Member Data Documentation

autoAllowed

libcamera::ipa::agc::Session::autoAllowed

Whether to enable auto controls.

See also

AgcAlgorithm::ConfigurationParams::autoAllowed

---

The documentation for this struct was generated from the following files:

• src/ipa/libipa/agc.h
• src/ipa/libipa/agc.cpp
