libcamera::ipa::AgcAlgorithm::ConfigurationParams Struct Reference

Parameters for AgcAlgorithm::configure() More...

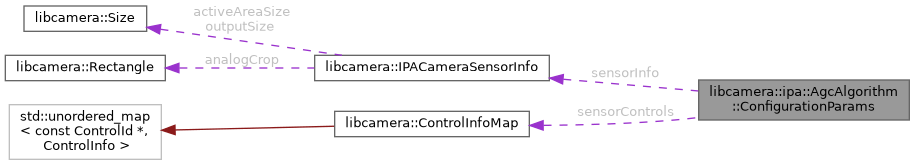

Collaboration diagram for libcamera::ipa::AgcAlgorithm::ConfigurationParams:

Public Attributes
const IPACameraSensorInfo &	sensorInfo
	Current configuration of the sensor.
const ControlInfoMap &	sensorControls
	ControlInfoMap of the sensor.
ControlInfoMap::Map &	ctrlMap
	ControlInfoMap::Map to update with controls.
bool	autoAllowed = true
	Whether to enable auto controls.

Detailed Description

Parameters for AgcAlgorithm::configure()

Member Data Documentation

autoAllowed

libcamera::ipa::AgcAlgorithm::ConfigurationParams::autoAllowed = true

Whether to enable auto controls.

If false, the algorithm is set up for manual exposure and gain control only, without automatic adjustments. In this mode statistics must not be provided to AgcAlgorithm::process(), and ExposureTimeMode and AnalogueGainMode will only advertise manual control.

---

The documentation for this struct was generated from the following files:

• src/ipa/libipa/agc.h
• src/ipa/libipa/agc.cpp
