libcamera::ipa::ipu3::IPAActiveState Struct Reference

The active state of the IPA algorithms. More...

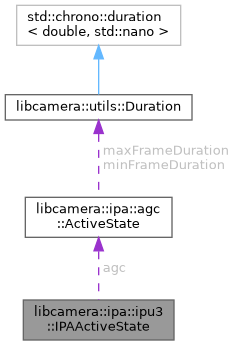

Collaboration diagram for libcamera::ipa::ipu3::IPAActiveState:

Public Attributes
struct {
uint32_t   focus
double   maxVariance
bool   stable
}	af
	Context for the Automatic Focus algorithm.
agc::ActiveState	agc
	Context for the Automatic Gain Control algorithm.
struct {
struct {
double   red
double   green
double   blue
}   gains
double   temperatureK
}	awb
	Context for the Automatic White Balance algorithm.
struct {
double   gamma
struct ipu3_uapi_gamma_corr_lut   gammaCorrection
}	toneMapping
	Context for ToneMapping and Gamma control.

Detailed Description

The active state of the IPA algorithms.

The IPA is fed with the statistics generated from the latest frame captured by the hardware. The statistics are then processed by the IPA algorithms to compute ISP parameters required for the next frame capture. The current state of the algorithms is reflected through the IPAActiveState to store the values most recently computed by the IPA algorithms.

Member Data Documentation

gammaCorrection

toneMapping libcamera::ipa::ipu3::IPAActiveState::gammaCorrection

Per-pixel tone mapping implemented as a LUT.

The LUT structure is defined by the IPU3 kernel interface. See <linux/intel-ipu3.h> struct ipu3_uapi_gamma_corr_lut for further details.

---

The documentation for this struct was generated from the following files:

• src/ipa/ipu3/ipa_context.h
• src/ipa/ipu3/ipa_context.cpp
