Collection of parameters for the mean luminance AGC algorithm. More...

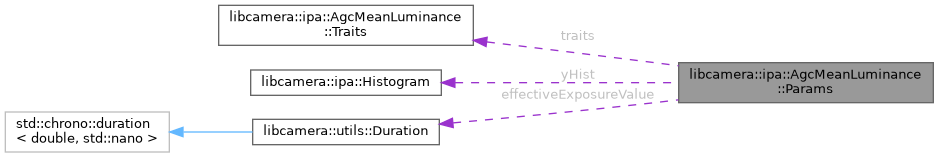

Collaboration diagram for libcamera::ipa::AgcMeanLuminance::Params:

[legend]

Public Attributes
const Traits &	traits
	The traits object implementing the necessary functions.

const Histogram &	yHist
	A histogram from the ISP statistics to use in constraining the calculated gain.

utils::Duration	effectiveExposureValue
	The EV applied to the frame from which the statistics in use derive.

uint32_t	constraintModeIndex
	The index of the constraint mode to use.

uint32_t	exposureModeIndex
	The index of the exposure mode to use.

double	lux = 0
	The lux level to be used in the AGC calculations. A value of 0 means no measurement and a default value of kDefaultLuxLevel is used if necessary.

double	exposureCompensation = 1
	The exposure compensation value to be used in the AGC calculations It is expressed as gain instead of EV.

Detailed Description

Collection of parameters for the mean luminance AGC algorithm.

The documentation for this struct was generated from the following files:
