libcamera::DebayerCpuThread Class Reference

Class representing one CPU debayering thread. More...

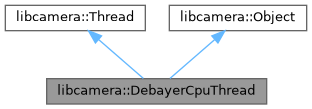

Inheritance diagram for libcamera::DebayerCpuThread:

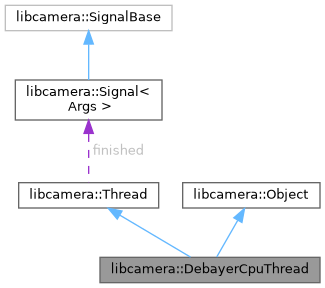

Collaboration diagram for libcamera::DebayerCpuThread:

Public Member Functions
	DebayerCpuThread (DebayerCpu *debayer, unsigned int threadIndex, bool enableInputMemcpy)
	Construct a DebayerCpuThread object.
void	configure (unsigned int yStart, unsigned int yEnd)
	Configure thread to process a specific part of the image.
void	process (uint32_t frame, const uint8_t *src, uint8_t *dst)
	Process part of the image assigned to this debayer thread.
Public Member Functions inherited from libcamera::Thread
	Thread (std::string name={})
	Create a thread.
void	start ()
	Start the thread.
void	exit (int code=0)
	Stop the thread's event loop.
bool	wait (utils::duration duration=utils::duration::max())
	Wait for the thread to finish.
int	setThreadAffinity (const Span< const unsigned int > &cpus)
	Set the CPU affinity mask of the thread.
bool	isRunning ()
	Check if the thread is running.
EventDispatcher *	eventDispatcher ()
	Retrieve the event dispatcher.
void	dispatchMessages (Message::Type type=Message::Type::None, Object *receiver=nullptr)
	Dispatch posted messages for this thread.
void	removeMessages (Object *receiver)
	Remove all posted messages for the receiver.
Public Member Functions inherited from libcamera::Object
	Object (Object *parent=nullptr)
	Construct an Object instance.
virtual	~Object ()
	Destroy an Object instance.
void	deleteLater ()
	Schedule deletion of the instance in the thread it belongs to.
void	postMessage (std::unique_ptr< Message > msg)
	Post a message to the object's thread.
template<typename T , typename R , typename... FuncArgs, typename... Args, std::enable_if_t< std::is_base_of< Object, T >::value > * = nullptr>
R	invokeMethod (R(T::*func)(FuncArgs...), ConnectionType type, Args &&... args)
	Invoke a method asynchronously on an Object instance.
Thread *	thread () const
	Retrieve the thread the object is bound to.
void	moveToThread (Thread *thread)
	Move the object and all its children to a different thread.
Object *	parent () const
	Retrieve the object's parent.

Additional Inherited Members
Static Public Member Functions inherited from libcamera::Thread
static Thread *	current ()
	Retrieve the Thread instance for the current thread.
static pid_t	currentId ()
	Retrieve the ID of the current thread.
Public Attributes inherited from libcamera::Thread
Signal	finished
	Signal the end of thread execution.
Protected Member Functions inherited from libcamera::Thread
int	exec ()
	Enter the event loop.
virtual void	run ()
	Main function of the thread.
Protected Member Functions inherited from libcamera::Object
virtual void	message (Message *msg)
	Message handler for the object.
bool	assertThreadBound (const char *message)
	Check if the caller complies with thread-bound constraints.

Detailed Description

Class representing one CPU debayering thread.

Implementation for CPU based debayering threads.

Constructor & Destructor Documentation

DebayerCpuThread()

libcamera::DebayerCpuThread::DebayerCpuThread	(	DebayerCpu *	debayer,
		unsigned int	threadIndex,
		bool	enableInputMemcpy
	)

Construct a DebayerCpuThread object.

Parameters

[in]	debayer	pointer back to the DebayerCpuObject this thread belongs to
[in]	threadIndex	0 .. n thread-index value for the thread
[in]	enableInputMemcpy	when set copy input data to a heap buffer before use

Member Function Documentation

configure()

void libcamera::DebayerCpuThread::configure	(	unsigned int	yStart,
		unsigned int	yEnd
	)

Configure thread to process a specific part of the image.

Parameters

[in]	yStart	y coordinate of first line to process
[in]	yEnd	y coordinate of the line at which to stop processing

Configure the thread to process lines from yStart to yEnd - 1.

process()

void libcamera::DebayerCpuThread::process	(	uint32_t	frame,
		const uint8_t *	src,
		uint8_t *	dst
	)

Process part of the image assigned to this debayer thread.

Parameters

[in]	frame	The frame number
[in]	src	The source buffer
[in]	dst	The destination buffer

---

The documentation for this class was generated from the following file:

• src/libcamera/software_isp/debayer_cpu.cpp
